Vacuum applications
- We have thicker liners available for increased resistance to vacuum or for full vacuum applications
- Liner thickness varies from 3mm to 10mm depending on the size valve (3mm is default)
- To calculate the required liner thickness, we need to know the valve size 2-24” (DN 50-600), the temperature, and the amount of vacuum
Disc Liner Repair Kits*
- We offer inexpensive repair kits* as an alternative to replacing the entire valve.
- Kits* include all wear components: Disc, Liner, Backup Elastomers, Stem Seals, Gaskets, and Washers.
- * Repair kits are only available in the Americas. In Europe and Asia, individual parts can be ordered as needed.
Handles and Gear Operators

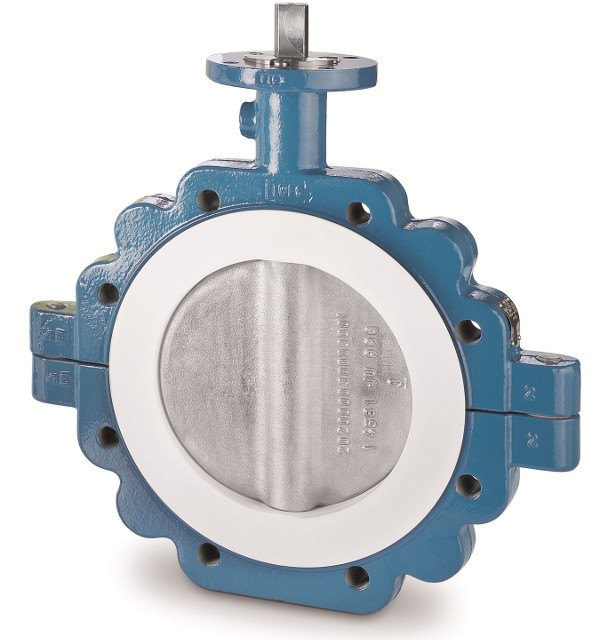

Bare Stem
Valves can be sold without any accessories

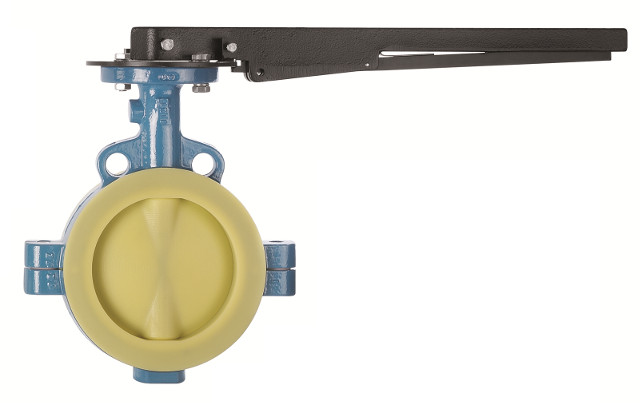

Handle
Available on sizes 2-8” (DN50-20). Comes with a lockable hole.

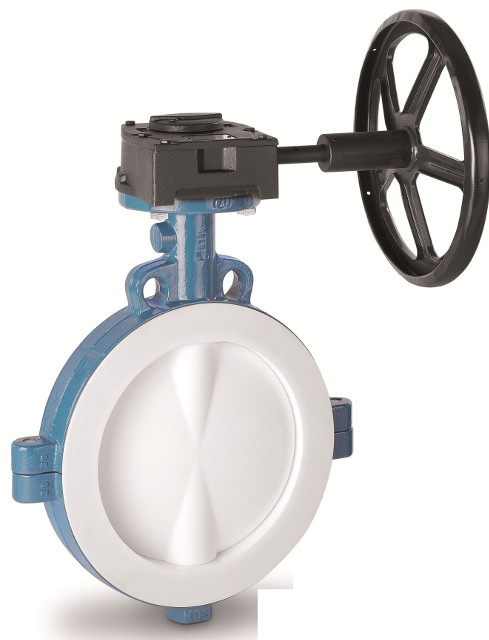

Gear Operator
Standard product does not have a locking feature, though it is available. Gears are offered on all sizes.
Chain Wheel Gear Operator
The length of chain needs to be specified.
Air Actuators and Accessories
- Offer Scotch Yoke pneumatic actuators and electric actuators for all sizes
- We offer both double- and single-acting
- A mounting plate and coupling are used to attach the actuator to the valve
- To recommend an actuator, we need to know:
- The size of the valve and liner material
- Actuator Type: Pneumatic or Electric
- Actuator Function: Double-Acting, Single Spring Closed, or Single Spring Open
- If Pneumatic: Air pressure available for actuator
- If Electric: Voltage and Frequency
- If any accessories are needed: limit switch, positioner, solenoid valve, etc.
